OKM eXp 6000 Professional Plus (2016-2021)
- All-inclusive: Detector for treasure hunters with highest demands - including all features
- Measuring Depth: customers found objects to 25 m (82 ft) deep - check our references
- Use cases: treasure hunting, natural gold prospection, cavity detection
- Operating modes: Ground Scan, Magnetometer, Pinpointer, Mineral Scan, Tunnel Scan, Live Stream
- Detectable objects: treasure chests, cavities, tunnels
Introduction of ground scanner OKM eXp 6000:
How to use the ground scanner OKM eXp 6000:
3D metal detector and ground scanner with video eye glasses

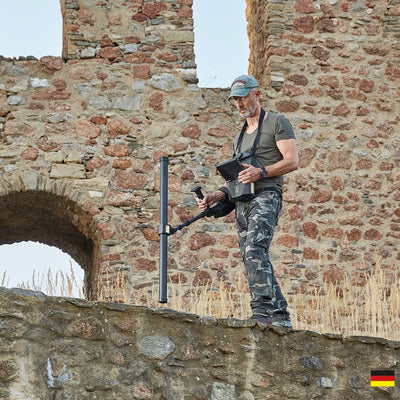

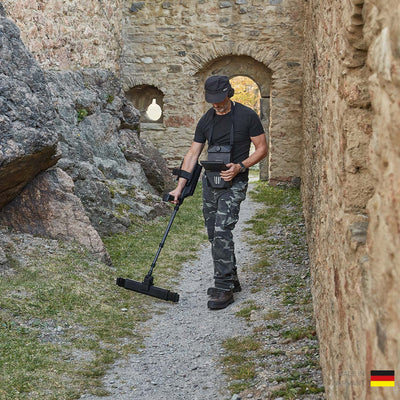

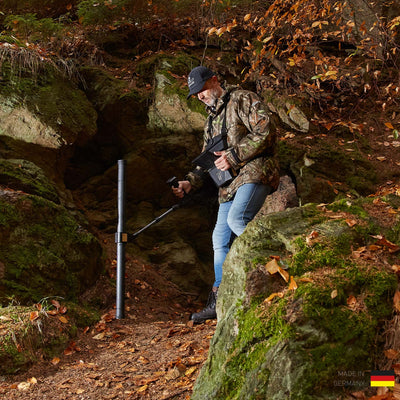

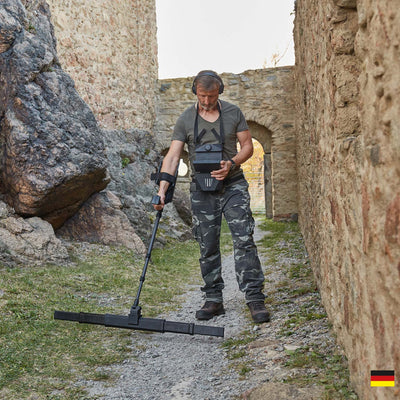

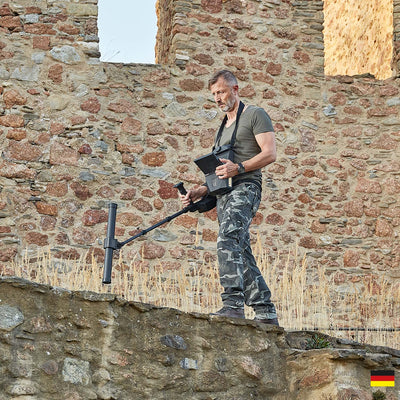

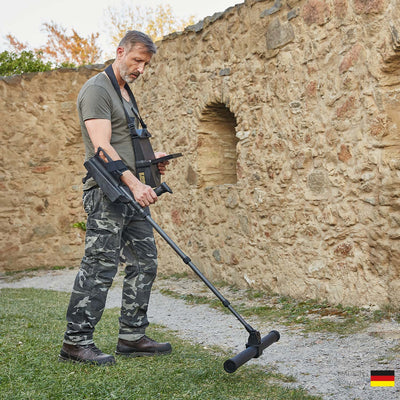

The eXp 6000 ground scanner and 3D metal detector is one of OKM’s top of the line detecting tools for treasure hunters, metal detectorists, archaeologists, prospectors, gold seekers and ground surveyors. This detector is completely wireless and can be controlled by either touch screen, Android video eye glasses or Android Tablet PC. It is the world’s first 3D ground scanner that utilizes an innovative Telescopic Probe which can be extended from 50 to 120 cm.

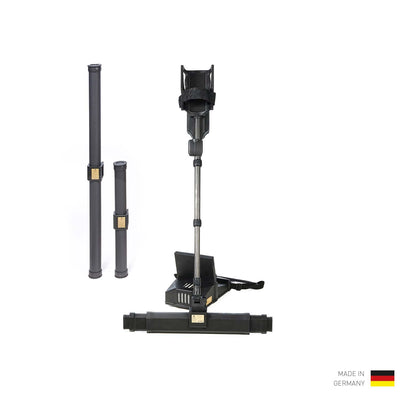

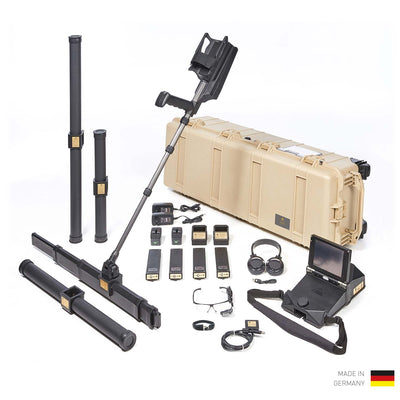

1x | Control unit |
1x | Wireless Telescopic Probe |
1x | Wireless Super Sensor |
1x | Wireless Live Stream Sensor |
1x | Wireless Tunnel Sensor |
1x | Telescopic rod assembly |
1x | Software Visualizer 3D Studio Professional Edition |
1x | Waterproof and shock resistant Pelican case |
1x | Bluetooth headphones |

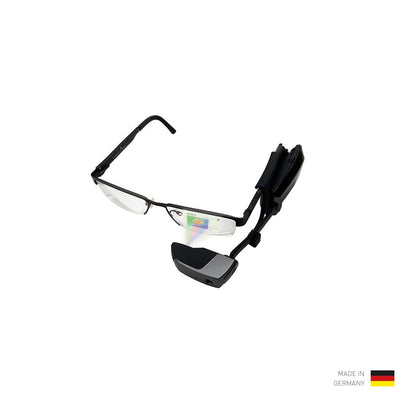

1x | Video eye glasses with integrated headphones |
1x | GPS receiver with cable |
4x | Power Pack |
2x | Charger, docking station and travel adapter |
1x | USB flash drive |
1x | Quick Start Guide |
Control unit
- Dimensions (H x W x D): 320 x 190 x 95 mm
- Weight: approx. 2200 g
- Processor / Main CPU: QuadCore AMD @ 2 GHz, OpenGL 4.2 HD Radeon GPU
- Display CPU: 6.5", 1024 x 768 Pixel TFT | Color | 650 cd/qm
- Data memory: 16 GB Industrial SDCard, Class 10
- Operating temperature: 0°C – 70°C
- Storage temperature: –20° – 60°C
- Waterproof: No
- Voltage: 11.8 – 14.8 VDC, 30 W maximum
- Operating time: approx. 3 hours (delivered power supply full charged, 25°C)
- Air humidity: 5% – 75%
- Feedback: acoustic, visual
- Protection Type: IP40
- Data Transmission Technology: WiFi 802.11n a/b/g, MIMO 2x2
- Data Transmission Rate: 11 – 54 Mbps
- Range: max. 30 m (line of sight to telescopic rod assembly)
- Working memory: 4 GB Kingston HyperX
Telescopic rod assembly
- Weight: approx. 1900 g
- Data memory: 256 KB
- Operating temperature: 0°C – 70°C
- Storage temperature: –20°C – 60°C
- Waterproof: No
- Processor: ARM Cortex M0+ @ 48 MHz
- Voltage: 11.8 - 14.8 VDC, 30W maximum
- Operating time: approx. 5 h (delivered power supply full charged, 25°C)
- Air humidity: 5% – 75%
- Protection Type: IP40
- Data Transmission Technology: WiFi 802.11n a/b/g, MIMO 2x2
- Data Transmission Rate: 11 – 54 Mbps
- Range: max. 30 m (line of sight to control unit)
- Working memory: 32 KB
Computer minimum requirements
- CD-ROM drive: minimum 4x
- Interface (Data transmission): USB
- Free disk space: minimum 50 MB
- Working memory (RAM): minimum 256 MB
- Graphic card: minimum 128 MB, OpenGL-compatible
- Processor: minimum 1.2 GHz
- Operating system: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
The technical data are average values. Minor deviations are possible during operation.
